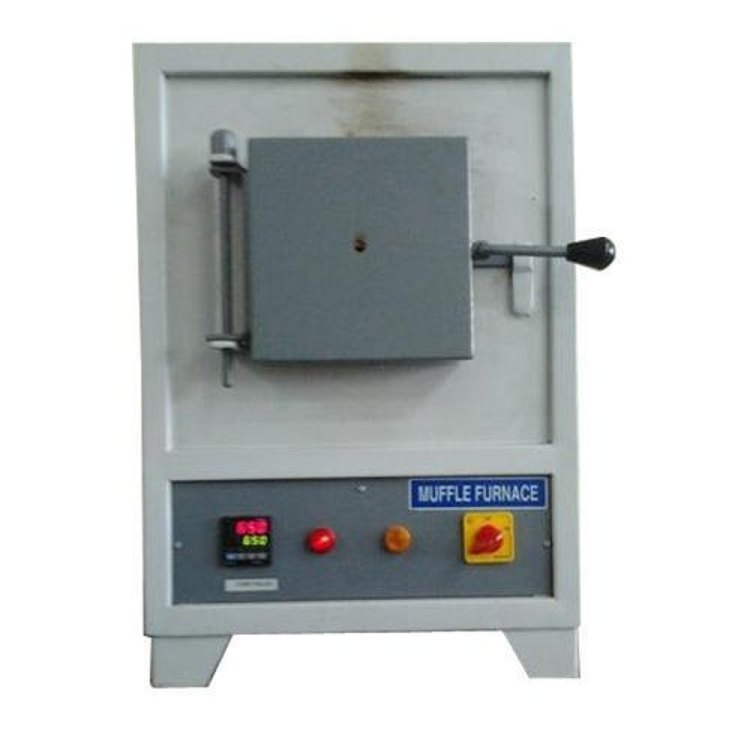

MUFFLE FURNACE : Ai-009 Series
Laboratory furnaces are used in scientific research and industrial laboratories to create controlled high-temperature environments for experiments and procedures. These box furnaces are insulated with ceramic fiber to heat materials quickly and isolate them from external substances. They can be used for gravimetric analysis, sintering, quantitative analysis, and sample volatility studies.
APPLICATION
- Annealing: Improves the ductility and malleability of metal samples
- Solvent removal: Removes solvents
- Sterilizing: Sterilizes materials
- Evaporation: Evaporates materials
- Polymer curing: Cures polymers
- Polyimide baking: Bakes polyimide
- Materials testing: Tests materials
- Sintering: Sinters materials
- Heat treatment: Treats materials with heat
- Gravimetric analysis: Analyzes materials by weight
- Quantitative analysis: Analyzes materials quantitatively
- Sample volatility studies: Studies the volatility of samples
- Pyrolysis: Uses pyrolysis in applications
- Crystal growing: Grows crystals
TECHNICAL SPECIFICATION
| Parameters | Description |
| Door type | Horizontal Opening (can be up to 180°) |
| Material of Construction | Interior : Ceramic Muffle Exterior : MS with powder coating |
| Construciton type | Double walled with ceramic fiber blanket insulation |
| Controller Type | Microprocessor based |
| Max Temperature Range | Up to to 900°C ± 1°C |
| Working Temperature Range | Up to to 800°C ± 1°C |
| Temp Sensor | J / K / R / Pt Rh (depending upon requirement) |
| Display Unit | LED / LCD for Set Value(SV) & Process Value(PV) |
| Heating Element | A1-Kanthal Wire |
| Safety | Auto heating cut off in case of temperature overshoot against set value. Over-Current Breaker / Short-Circuit Protected. Door fitted with a micro-switch to cut off heating when it is opened. |
| Power Supply | Works on 220V 50 Hz AC |
| Relay Type | SSR |
OPTIONAL FEATURES
- Programmable PID (Non-Programmable / Programmable up to 32steps) / HMI-PLC Control system
- Thyristor control system to achieve desired temperature within desired time interval
- Fully SS-304 / SS-316 Construction (GMP Model)
- Caster Wheel for mobility
- Increased Temperature Range : 1000 / 1100 / 1200 / 1300 / 1400°C
- Silicone Carbide heating element in case of temperature range above 1200°C
- Gas Port with valve for gas inlet & purging
- Fume exhaust system
- USB / RS-232 Interface
- Voltage stabilizer
VARIOUS SIZES ARE AVAILABLE :
| Series | Chamber Dimensions | Volumetric Capacity (Approx) |
| Ai-009A | 100 x 100 x 225mm | 1.2 LTR |
| Ai-009B | 125 x 125 x 250mm | 3.9 LTR |
| Ai-009C | 150 x 150 x 300mm | 6.75 LTR |
| Ai-009D | 200 x 200 x 300mm | 12 LTR |
| Ai-009E | 175 x 175 x 475mm | 14.5 LTR |
| Ai-009F | 225 x 225 x 450mm | 22.7 LTR |
| Ai-009G | 300 x 300 x 300mm | 27 LTR |
| Ai-009H | 300 x 300 x 450mm | 40 LTR |
Please contact us if you have different dimensional requirements.
