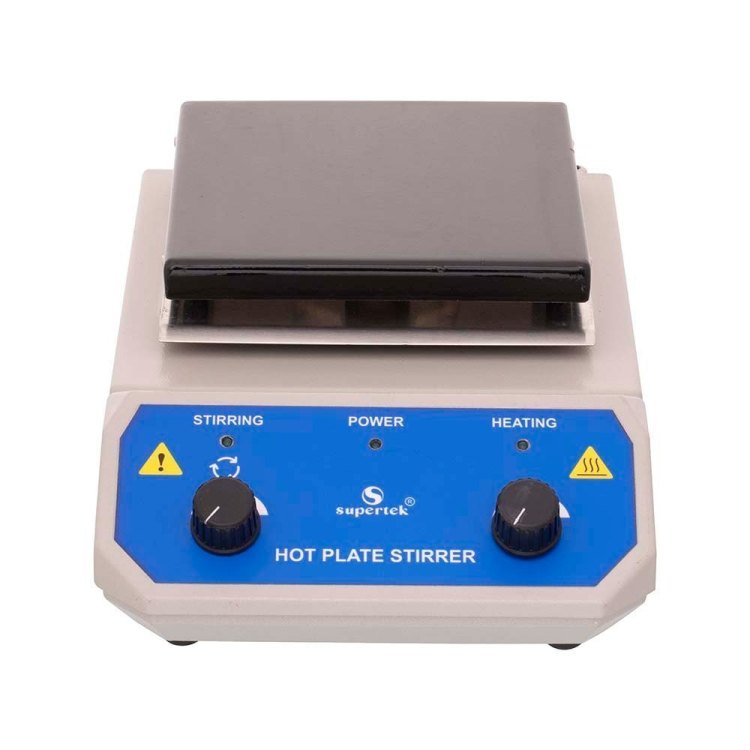

Magnetic Stirrer With Hot Plate:
Ai-021H Series
Magnetic stirrers with hot plates are used in laboratories for a variety of applications that require precise temperature control and efficient mixing of liquids. They are commonly used in scientific research, medical laboratories, and industrial applications:
APPLICATION
- Chemistry: Mixing reagents, preparing samples for analysis, and maintaining a consistent temperature and agitation rate for chemical reactions
- Biology: Preparing media for bacterial growth
- Medical laboratories: Cell culture and microbiology
- Other applications: Oil analysis, soil suspension, buffer solution production, and pH testing
TECHNICAL SPECIFICATION
| Parameters | Description |
| Control System | Microprocessor based Digital RPM Meter |
| MOC | Body : Mild Steel with powder coating Top Plate : SS-304 |
| Capacity | 1L / 2L / 5L / 10L / 15L / 20L (contact us incase you need different capacity requirement) |
| Temp. Range | RT + 5°C to 250°C |
| Display Type | LED / LCD for Set Value(SV) & Process Value(PV) |
| Speed Range | 0 to 1200RPM |
| RPM Control | Via Knob |
| Safety | Auto heating cut off incase of temperature overshoot. Thermostat / Energy Regulator Short Circuit Protected |
| Motor | Brushless DC Drive |
| Condenser & Boiler | Removable |
| Power Supply | 220V 50Hz AC |
| Accessories | One Teflon Stirring bar |
OPTIONALS :
- PID Control system
- USB / RS-232 Port for data logging
- Increased temperature range : up to 300 / 350 / 400 / 450 / 500 / 550°C
- Increased speed range : up to 2200RPM
- Top Plate : Teflon coated / Ceramic Top
- Multipler Heat Stations : 5 / 10 / 15
- Non-slip rubber mat
- Digital Timer
Please contact us if you have different dimensional requirements.
