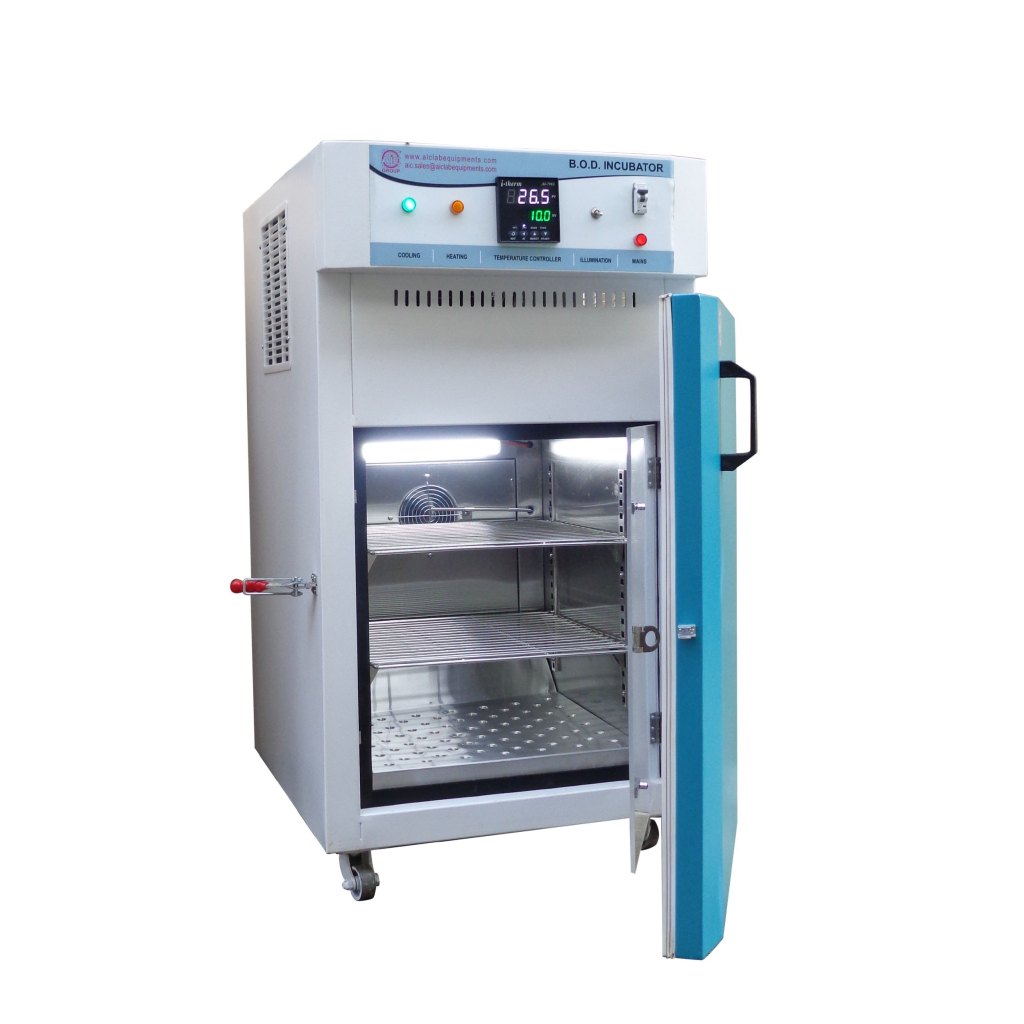

BOD INCUBATOR : Ai-085 Series
A BOD (Biochemical Oxygen Demand) incubator is a laboratory instrument that measures how much oxygen microorganisms consume in water or wastewater samples. It’s used in many fields, including environmental research, microbiology, and plant pathology
APPLICATION
- Environmental research : BOD incubators can help determine the amount of oxygen bacteria need to break down organic matter in water samples. This information can be used to assess water pollution and the effectiveness of treatment processes.
- Microbiology : BOD incubators can be used for cell culture and fungal growth, as well as to maintain cultures of organisms for later use.
- Plant pathology : BOD incubators can maintain specific temperatures for optimal growth of bacteria and fungi, as well as circulate air and maintain humidity.
- Other uses : BOD incubators can also be used for fermentation, crop and physiology studies, pharmaceutical tests, and more
TECHNICAL SPECIFICATION
| Parameters | Description |
| Door Observation | Acrylic / Glass viewing window Magnetic gasket for proper door sealing |
| Material of Construction | Interior : SS-304 Exterior : MS with powder coating |
| Construciton type | Double walled with thick PUF insulation |
| Controller Type | Microprocessor based |
| Temperature Range | 5°C to 50°C ± 0.5°C |
| Temp Sensor | PT-100 |
| Display Unit | LED / LCD for Set Value(SV) & Process Value(PV) |
| Refrigeration | Hermetically sealed compressor CFC / HCFC free refrigeration. |
| Heater Type | SS Tubular Air Heater |
| Heating Element | A1-Kanthal Wire |
| Safety | Auto heating cut off in case of temperature overshoot against set value. Over-Current Breaker / Short-Circuit Protected. Door is fitted with microswitch to auto cut off heating in case door is opened. |
| Power Supply | Works on 220V 50 Hz AC |
| Air Circulation | Motorized Fan |
| Shelves | Adjustable |
| Relay Type | SSR |
| Accessories | One SS-304 tray / Shelf to keep the samples (adjustable) |
OPTIONAL FEATURES
- PID / HMI-PLC Control system
- Fully SS-304 / SS-316 Construction (GMP Model)
- Caster Wheel for mobility
- Digital countdown timer with audio-visual alarm system
- Temperature Range Variation : 0 / 5 / … up to 60 / 70 / 80°C (or as required)
- Illumination facility inside the chamber
- Extra trays / shelves
- USB / RS-232 Interface
- Voltage stabilizer
VARIOUS SIZES ARE AVAILABLE :
| Series | Chamber Dimensions (Approx.) | Volumetric Capacity (Approx) |
| Ai-085A | 455x410x610 mm (WxDxH ) | 4 Cu. Ft |
| Ai-085B | 505x415x830 mm ( WxDxH ) | 6.1 Cu. Ft. |
| Ai-085C | 575x550x875 mm (WxDxH ) | 10 Cu. Ft. |
| Ai-085D | 650x580x900 mm (WxDxH ) | 12 Cu. Ft. |
| Ai-085E | 700x650x900 MM ( WxDxH) | 15 Cu. Ft. |
Please contact us if you have different dimensional requirements.
